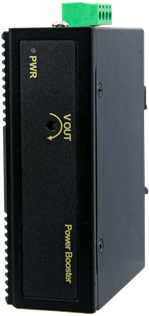

ALLNET Power-Booster 12-24VDC to 48~54VDC max. 200W HUT/DIN-Mounting ALL-B101-12-24VDC
Precios incl. IVA legal más gastos de envío
Listo para envío inmediato, tiempo de entrega aprox. 1-3 días hábiles
- N.º artículo: 224285
Highlights:
- Robust industrial 200W "power booster"
- Voltage boost from 12V DC to 54V DC to supply the PD devices with max. 100W
- Voltage boost from 24V DC to 54V DC to supply the PD devices with max. 200W
- Input voltage 12~24V DC
- Output voltage variably adjustable from 48V DC to 54V DC (rotary knob/screwdriver flat front)
- Extended operating temperature: -40°C to +75°C
This PoE Voltage Booster is a rugged and versatile solution for demanding environments. It raises the low input voltage to provide PoE to end devices to guarantee a steady voltage output to your PD in a harsh environment. With input voltage range 12~24VDC, it efficiently boosts the voltage to 52~54VDC and delivering 100W of power; alternatively, with input voltage range 24~48VDC, it boost the voltage to 52~54VDC and providing a robust power output of 200W. With an adjustable voltage knob, you can fine-tune the output voltage between 52VDC to 54VDC to match your device's requirements.
It’s tested rigorously for security, transportation, and telco applications, this power booster ensures reliable operation in harsh conditions. Experience enhanced power delivery with the Hardened Industrial 100W/200W Power Booster.
Housing Dimension (mm)
Technical Details
|
LED |
PWR(Amber) ON– power ready. OFF – no power input |
| Overload current protection | Present |
|
Removable Terminal Block / Power Connector |
4 pin terminal block. 2 pin for 12~48VDC Voltage Input 2 pin for 52~54 VDC Voltage output |
|
Removable Terminal Block |
Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm |
|
Voltage Adjustable Knob |
To adjust voltage output from 52VDC to 54VDC to meet your existing application |
|
Booster Power |
Maximum Booster power 100watts at 12~24VDC input Maximum Booster power 200watts at 24~48VDC input |
|
Operating Temperature |
-40°C to +75°C fully tested. |
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
Storage Temperature |
-40°C to +85°C |
|
Housing |
Rugged Metal, IP30 Protection |
|
Case Dimension (L X W X D) mm |
103.5 x 32 x 81.5 mm (LxWxD) |
|
Installation mounting |
DIN-Rail and wall mount brackets included |
Certifications
|
Safety |
LVD (EN62368-1) |
|
EMC |
FCC/CE |
|
EMI |
CISPR 32, FCC Part 15B Class A |
|
EMS |
IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV IEC 61000-4-5 Surge: Power: 4KV; Signal: 2KV |
|
Vibration |
EN 60068-2-6 |
|
Shock |
EN 60068-2-27 |
|
Free Fall |
EN 60068-2-32 |
