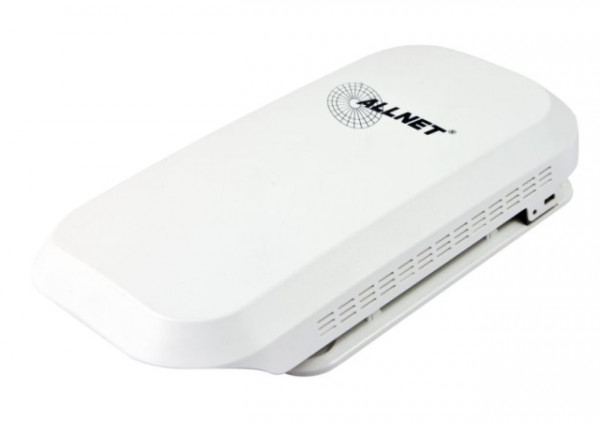

ALLNET ALL0368S / Wireless AP 300Mbit Wireless AP OpenWrt

ALLNET ALL0368S / Wireless AP 300Mbit Wireless AP OpenWrt

91,49 € *

Precios incl. IVA legal más gastos de envío

En breve, disponible de nuevo.

N.º artículo: 135890

High-Powered, Wandmontage, Wireless N 300MBps? Indoor Access Point Hightlights: •...más

Cerrar menú

Información del producto "ALLNET ALL0368S / Wireless AP 300Mbit Wireless AP OpenWrt"

High-Powered, Wandmontage, Wireless N 300MBps? Indoor Access Point

Hightlights:

• Leistungsstarke Sendeleistung 26dBm / direktionale Antenne
• weiträumige Abdeckung
• Wireless N 2,4GHz 300Mbps Geschwindigkeit
• IEEE 802.3af/at PoE Standard
• Wand / Deckenmontage möglich
• 1x PoE 802.3at 30W Eingang (RJ 45)
• 1x PoE 802.3af 15,4W Ausgang (RJ 45)

Der Access Point verfügt über 26dBm Sendeleistung, dies ermöglicht eine bessere Durchdringung von Wänden, Decken und Fußböden. Der ALL0368 hat einen PoE Eingang (802.3at) und einen PoE Ausgang (802.3af), somit können Sie z.B. eine PoE Kamera direkt über den ALL0368 mit Strom versorgen.

Technische Daten:

Hardware specification
Element	Specification
Standard compliance:	802.11b, 802.11g, 802.11n 802.3 af/at
Memory:	64 MB
Flash:	16 MB
Physical interface:	2 x 10/100/1000Mbps Ports 1 x PSE port, 1 x PD port
Power:	12V 2A Power over Ethernet "HIGHLIGHT: PoE IEEE8023at 30W PD INPUT & IEEE802.3af 15,4W Output Power for example: ALLNET IP Cameras / LED Information Display / PoE Clock etc.
Antenna:	2x2 IPEX
Physical Dimension:	Top: 225.0 X 125.0 X 69.0 mm Bottom: 225.50 X 122.55 X 34.85 mm Mounting Base: 160.0 X 125.0 X 13.20 mm
Environmental Conditions:	Operating: 0 to 50ºC (32º to 122ºF) Humidity (non-condensing): 90% or less
LED:	WLAN, Port 1, Port 2
Marks:	CE/FCC
Wireless Features
Element	Specification
Security:	WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise IEEE 802.1X
Wireless frequency channel:	Auto, 1~14
Network mode:	11bgn mixed mode, 11b only, 11g only, 11n only
Adjust TX power:	Yes
SSID:	Yes
Broadcast SSID:	Enable/Disable
System Information:	IP Address / Subnet Mask / Mac Address
Firmware Upgrade (Wifi Controller):	Yes
Syslog:	Yes
Wireless frequency specification
Element
RF TX Specification	Data Rate (dBm±2dB) 11n HT20/40 MCS7 (19/19) 11n HT20/40 MCS6 (20/20) 11n HT20/40 MCS5 (22/22) 11n HT20/40 MCS4 (23/23) 11n HT20/40 MCS3 (24/24) 11n HT20/40 MCS2 (24/24) 11n HT20/40 MCS1 (24/24) 11n HT20/40 MCS0 (24/24) 11g 54M (19 11g 48M (20 11g 36M (22 11g 24M (23 11g 18M (24 11g 12M (24 11g 9M (24 11g 6M (24 11b 11Mbps (24) 11b 5.5Mbps (24) 11b 2.2Mbps (24) 11b 1Mbps (24)
RF RX Specification	Data Rate (dBm) 11n HT20/40 MCS7 (-71/-68) 11n HT20/40 MCS6 (-72/-69) 11n HT20/40 MCS5 (-75/-72) 11n HT20/40 MCS4 (-78/-75) 11n HT20/40 MCS3 (-81/-78) 11n HT20/40 MCS2 (-84/-81) 11n HT20/40 MCS1 (-86/-83)
Netzteil	ohne 12V/2A Netzteil (Zubehör 105571)
